Panoramic Slope Monitoring Radar with 360° Coverage, 0.1mm Accuracy, and 8kg Portable Design for Emergency Rescue
Panoramic Slope Monitoring Radar with 360° Coverage, 0.1mm Accuracy, and 8kg Portable Design for Emergency Rescue Panoramic Slope Monitoring Radar with 360° Coverage, 0.1mm Accuracy, and 8kg Portable Design for Emergency Rescue Panoramic Slope Monitoring Radar with 360° Coverage, 0.1mm Accuracy, and 8kg Portable Design for Emergency Rescue Panoramic Slope Monitoring Radar with 360° Coverage, 0.1mm Accuracy, and 8kg Portable Design for Emergency Rescue Panoramic Slope Monitoring Radar with 360° Coverage, 0.1mm Accuracy, and 8kg Portable Design for Emergency Rescue
Liên hệ với bây giờ

Panoramic Slope Monitoring Radar with 360° Coverage, 0.1mm Accuracy, and 8kg Portable Design for Emergency Rescue

Nguồn gốc: Trung Quốc Hàng hiệu: TOPSKY

Thông tin chi tiết
Bưu kiện: 1pc/túi Độ cao vượt qua chướng ngại vật: 300mm,
Động cơ: 12V Nhiệt độ bảo quản: -45oC～65oC;
Tên sản phẩm: Thiết bị chống khủng bố Trọng lượng cơ thể: 16kg
Kích thước bộ điều khiển: Không quá 263x206x156mm Kích thước khoan: 4/5/6/8 mm
Phá vỡ chiều rộng: 60-140cm Cái móc: SML
Vật liệu bảng: Vải Aramid UD (Kevlar) Kích thước bãi biển hơn: 73*16*50cm
Định dạng hình ảnh: JPEG hoặc BMP Phá vỡ khóa: 15
Cấp độ bảo vệ: NIJ IIIA cho 9mm và .44mag
Làm nổi bật:

360° Coverage Slope Monitoring Radar

,

0.1mm Accuracy Panoramic Radar

,

8kg Portable Emergency Radar

Mô tả sản phẩm

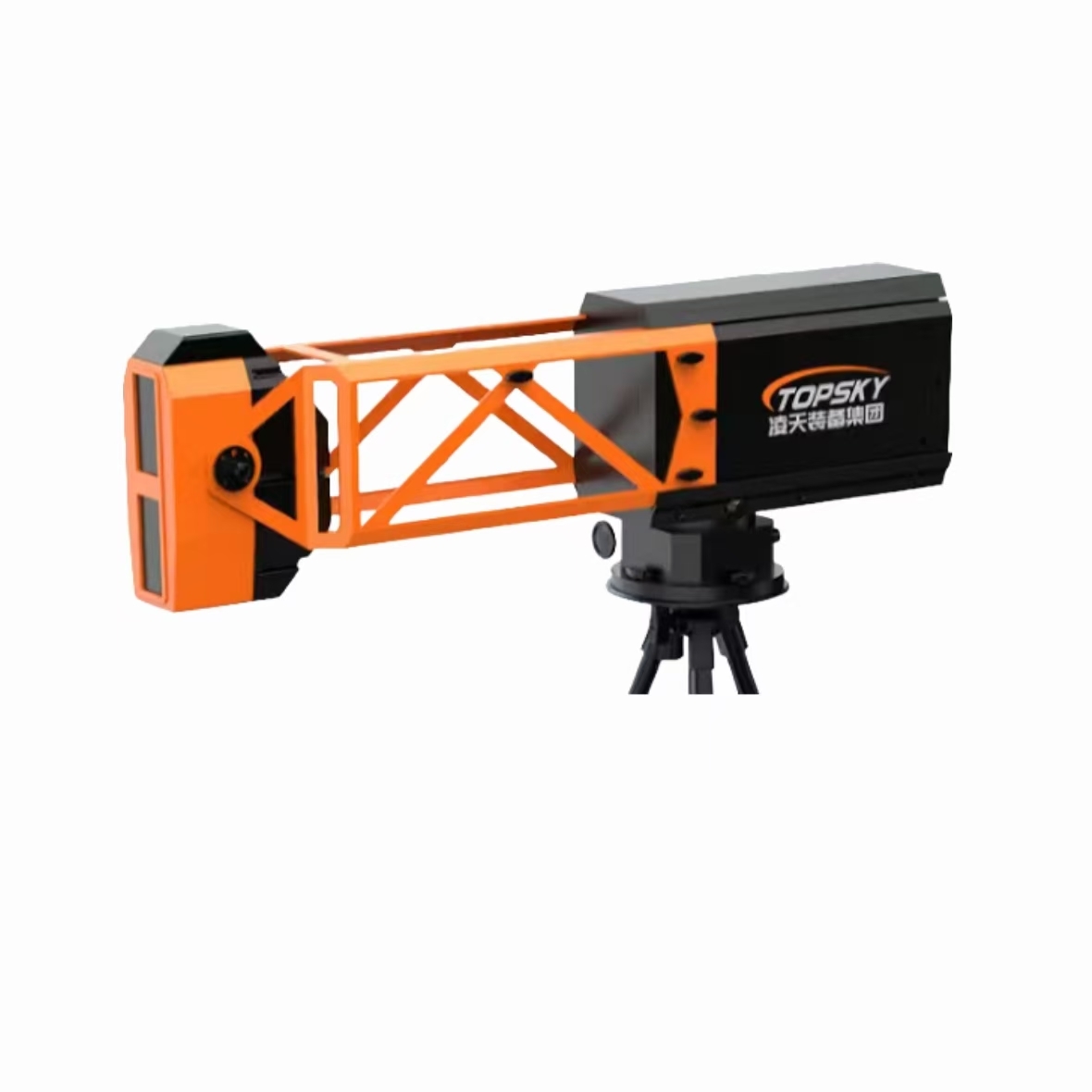

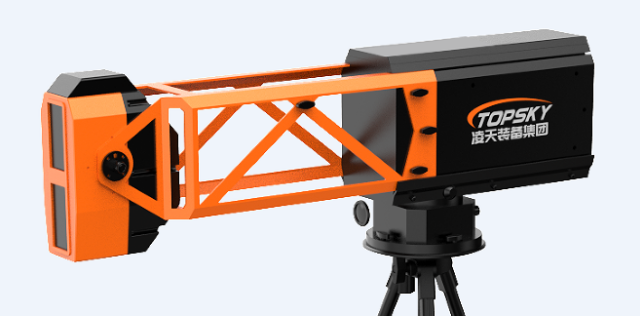

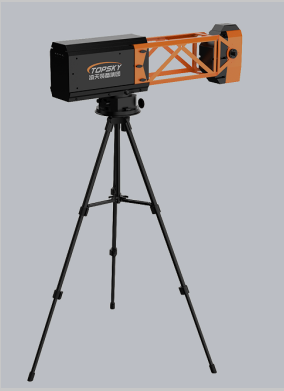

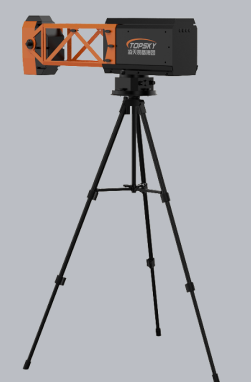

Panoramic Slope Monitoring Radar
The PSR-5000J emergency ultra-portable slope monitoring radar utilizes circular arc synthetic aperture radar technology with broadband frequency modulation continuous wave signals and phase difference interferometry measurement. This advanced system provides comprehensive 360° coverage, precise deformation measurement, and reliable all-weather operation.
Designed specifically for emergency rescue operations, this equipment emphasizes lightweight construction, portability, and low power consumption. With industry-leading size, weight, and power efficiency metrics, it enables rapid deployment in critical situations.
Key Applications
  • Open pit mines and geological landslides/collapses
  • Emergency rescue operations and disaster response
  • Water conservancy dams and infrastructure monitoring
  • Urban subsidence and subway transportation systems
  • Large bridges, high-rise buildings, and wind turbine towers
  • Railway slopes and transportation corridors
Technical Features
  • Precision Measurement: 0.1mm deformation accuracy with 30-second data update rate
  • All-Weather Operation: Microwave penetration capability ensures 24/7 monitoring unaffected by rain, snow, fog, or smoke
  • Complete Coverage: 360° panoramic monitoring without distance or angle blind spots
  • Edge Computing Architecture: Integrated processing, positioning, and communication functions within compact 8kg body
  • Rapid Deployment: Folded dimensions of 0.5×0.3×0.25m fit in 24-inch transport case for airline consignment
  • Remote Control: Electric pitch angle adjustment for flexible monitoring of varied terrain
  • Network Connectivity: B/S architecture supports local WiFi and remote 4G/5G cloud monitoring
  • Advanced Algorithms: Adaptive atmospheric disturbance compensation with less than 2mm/day error
  • Smart Alert System: Four-level sound/light, SMS, and email alarms with manual/auto monitoring points
  • 3D Visualization: Fast-rendering terrain matching algorithm with sub-meter accuracy
  • Rugged Design: IP66 protection rating and operational capability down to -40°C
Portability & Deployment
Weighing only 8kg with compact folded dimensions, the system enables single-person transport and rapid setup. The integrated edge computing architecture eliminates external processing requirements, allowing immediate operational readiness at emergency sites to protect rescue personnel from secondary disaster threats.
