Mine-used Intrinsically Safe Infrared Thermal Imager with Non-contact Temperature Measurement and High-definition Pseudo-color Image

Nguồn gốc: Trung Quốc Hàng hiệu: topsky

Thông tin chi tiết

Phá vỡ chiều rộng: 60-140cm Tính năng: không liên lạc
lực kéo: ≥5240n Truyền thông cho máy in: Bluetooth
Mục đích: Ngăn chặn và ứng phó các cuộc tấn công khủng bố Thời lượng Stanard: 320 phút
Nguồn điện: Pin sạc hoặc nguồn điện bên ngoài nghị quyết: > 20 (cho TNT)
Tổng trọng lượng: 21kg Tốc độ: 2s
Cân: 15,5kg Vật liệu: Thép cao cấp, Kevlar, vật liệu composite
khoảng cách điều khiển dây: 1000M nhà sản xuất: Nhiều nhà thầu quốc phòng chuyên ngành
Thời gian đáp ứng: Ít hơn 1s
Làm nổi bật:

Intrinsically Safe Infrared Thermal Imager

,

Non-contact Temperature Measurement Thermal Imaging Device

,

High-definition Pseudo-color Image Mine-used Thermal Imager

Mô tả sản phẩm

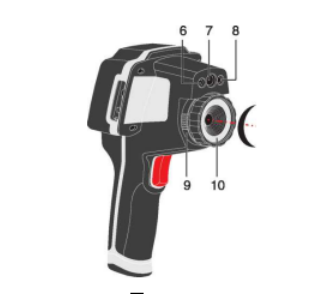

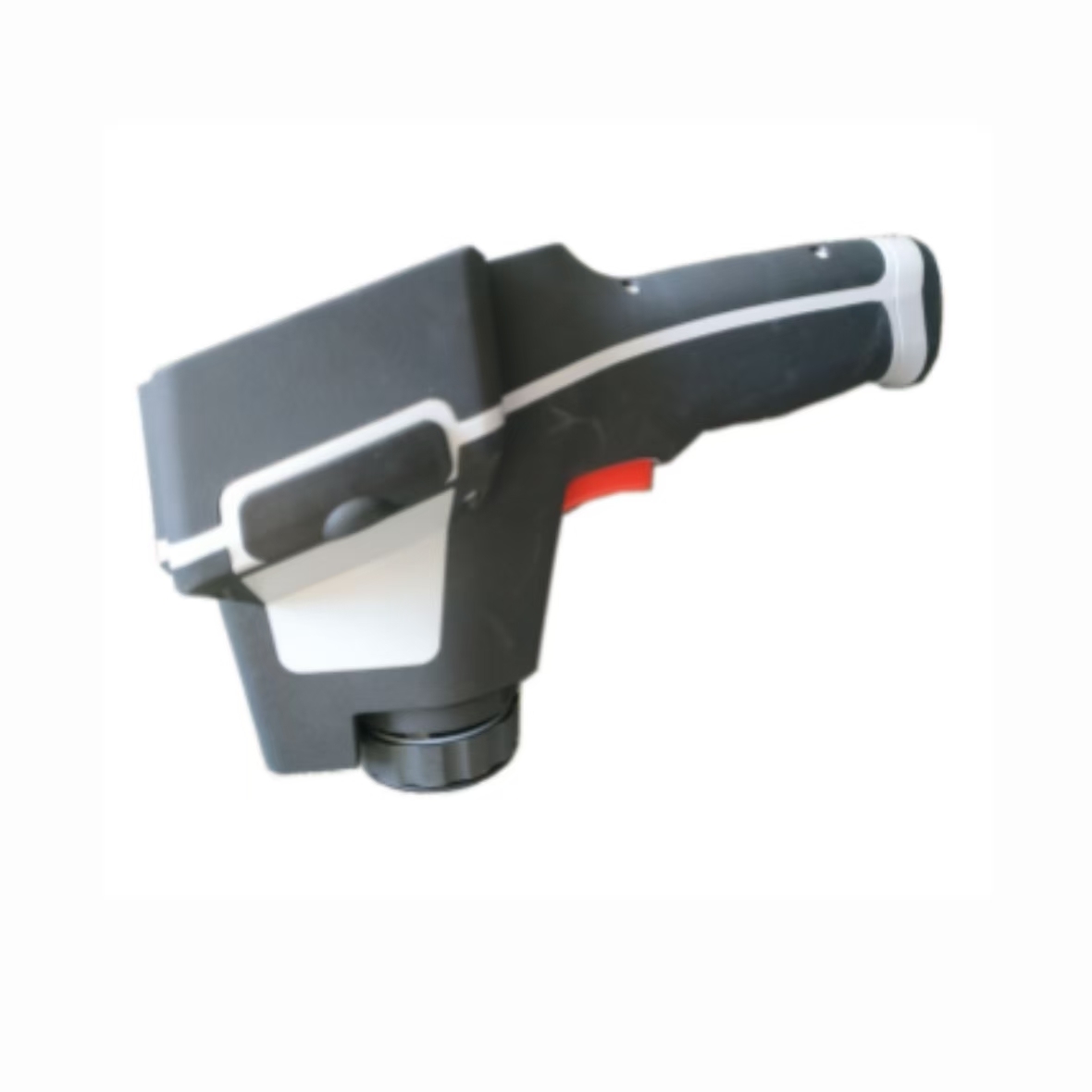

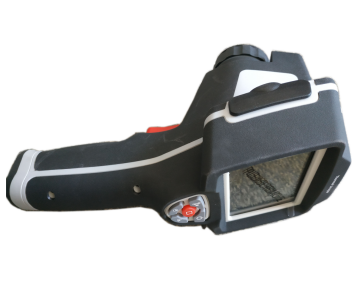

Mine-Used Intrinsically Safe Infrared Thermal Imager
The YRH800 mine-used intrinsically safe infrared thermal imager is designed for thermal imaging and temperature measurement in coal mine environments. This advanced thermal imaging device utilizes a non-cooled focal plane infrared detector to deliver high-definition, high-sensitivity pseudo-color thermal imaging with multi-point temperature measurement capabilities.
Product Overview
This thermal imager captures and stores infrared thermal spectrum data in images, videos, and audio recordings on a Micro SD card for comprehensive computer analysis and statistical evaluation. Suitable for all personnel including technicians, operators, and management teams, it enables reliable thermal detection in explosive hazard environments.
Applications include detecting high-temperature zones, real-time temperature differential imaging, identifying coal seam spontaneous combustion areas in ventilation workspaces, and assisting rescue teams in locating trapped personnel under low-visibility conditions.
Key Features
  • Digital display with 0.1°C resolution and positive/negative value indication
  • Dual operation modes: photo capture and temperature measurement with real-time video recording
  • Comprehensive data management: storage, retrieval, deletion, and playback functions
  • Advanced temperature measurement: maximum, minimum, and average temperatures for points, lines, and surfaces
  • Multiple pseudo-color and color scale display options
  • Programmable alarm system: high-temperature, low-temperature, and preset temperature alarms
  • Manual and automatic focusing capabilities
  • Background light control with brightness adjustment
  • °C/°F conversion with trigger lock functionality
  • User-friendly operation keyboard with Chinese menu interface
Technical Specifications
Temperature Measurement Repeatability ≤ 0.5°C
Alarm System Accuracy ±1.0°C deviation from set value with audible alarm activation
Battery Module Model PL123450, rechargeable, dual 1600mAh manganese oxide lithium batteries
Maximum Open-Circuit Voltage 8.4V DC
Maximum Short-Circuit Current 1.6A
Explosion-Proof Certification Mine intrinsically safe type, Ex ibⅠMb
Housing Material ABS + silicone construction
Weight 1.0kg
Dimensions 283 × 103 × 160mm
