Portable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range

Nguồn gốc: Trung Quốc Hàng hiệu: topsky

Thông tin chi tiết

Chiều dài sóng: 447nm; 415nm Bảo hành: 5 năm
Kích thước pixel: : Khoảng 160 μm. Tiếng ồn: ít hơn 30dB
Phạm vi lấy nét: 0.3m~ Điều chỉnh dọc: 0-30cm
Kích thước từ xa: 278*184*43mm Kích thước thiết bị nghe: 210*100*100mm
Bảo vệ cổ: 850m/s Người mẫu: RXR-M80D
Loại báo động: Âm thanh và độ rung nhẹ Kích thước bãi biển hơn: 73*16*50cm
Phóng đại: 16 lần Tốc độ tuyến tính tối đa: ≥1,52m/s, tốc độ Stepless điều khiển từ xa
Loại sản phẩm: Thiết bị
Làm nổi bật:

4G Transmission Dust Measurement Instrument

,

0.001mg/m3 Resolution Dust Concentration Meter

,

0.001mg/m3 to 50mg/m3 Range Dust Monitor

Mô tả sản phẩm

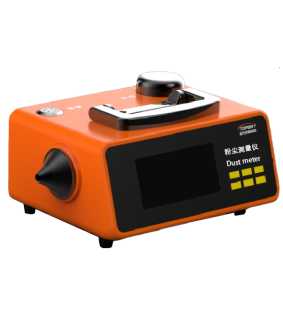

Dust Measurement Instrument
Product Overview
The CCZ500 dust measurement instrument is a portable, easy-to-use device that provides direct readings of dust concentration. Utilizing advanced light scattering technology with an infrared laser and imported photomultiplier tubes, it converts scattered light intensity into electrical signals to calculate mass concentration. This instrument features:
  • Fast, accurate measurements with high sensitivity
  • Stable performance with strong load capacity
  • Low susceptibility to optical path dust accumulation
  • Configurable alarm thresholds with audible/visual alerts
  • 4G data transmission for real-time monitoring
  • Compliant with MT163-1997, JJG846-2015, GB 20964-2007, and GB3836.4-2010 standards
Key Features
  • Lightweight: Compact and portable design for easy measurement
  • Efficient: Direct reading with one-button operation and 1-minute results
  • High Precision: Resolution of 0.001mg/m³
  • Automatic Alarm: Customizable threshold alerts
  • Data Processing: Scheduled sampling with TWA calculation
  • Networking: 4G transmission for real-time data visualization
  • Maintenance-free: No cleaning required for sensor module
  • Integrated: Durable, reliable design with attractive appearance
Technical Specifications
Dust Measurement Instrument
Measurement Range 0.001mg/m³ ~ 50mg/m³ (accuracy 0.001mg/m³)
0.01mg/m³ ~ 150mg/m³ (accuracy 0.01mg/m³)
Relative Error ≤ 10%
Measurement Time 1 minute (standard measurement time)
Alarm Function Built-in with customizable concentration settings
Data Storage Up to 9999 data sets
Calculations Automatic time-weighted average (TWA)
Network Function 4G transmission of dust concentration, temperature, humidity, and GPS data
Display 4.3-inch LCD screen
Working Time ≥ 6 hours
