Lightweight Explosive Disposal Robot with 10KG Grab & 500m Range

Nguồn gốc: Trung Quốc Hàng hiệu: topsky

Thông tin chi tiết

Phạm vi đo lường: 0-550mg/100ml Khai thác: 1200mm × 80mm
chế độ phát hiện: tự động Dung lượng kính vỡ: Thủy tinh ≤12mm
Đường kính mồi: 38mm tên khác: Áo choàng cách ly y tế loại coverall
Góc: 120 độ Thao tác Max Grab: 10kg
Mạng sống: 100 vụ xả súng Cách kiểm soát: Chạy bằng pin
Cấp độ bảo vệ: NIJ Cấp độ IIIA Trọng lượng động cơ chính: 28kg
nguồn điện hệ thống: AC220V/80W Sức mạnh ánh sáng màu tím: 700mW
Điều chỉnh dọc: 0-30cm
Làm nổi bật:

lightweight explosive disposal robot

,

10kg grab bomb disposal robot

,

500m range counter terrorism robot

Mô tả sản phẩm

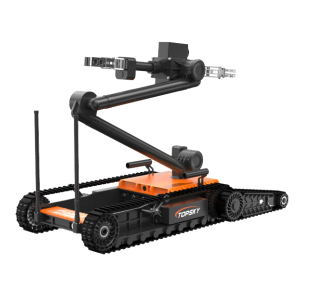

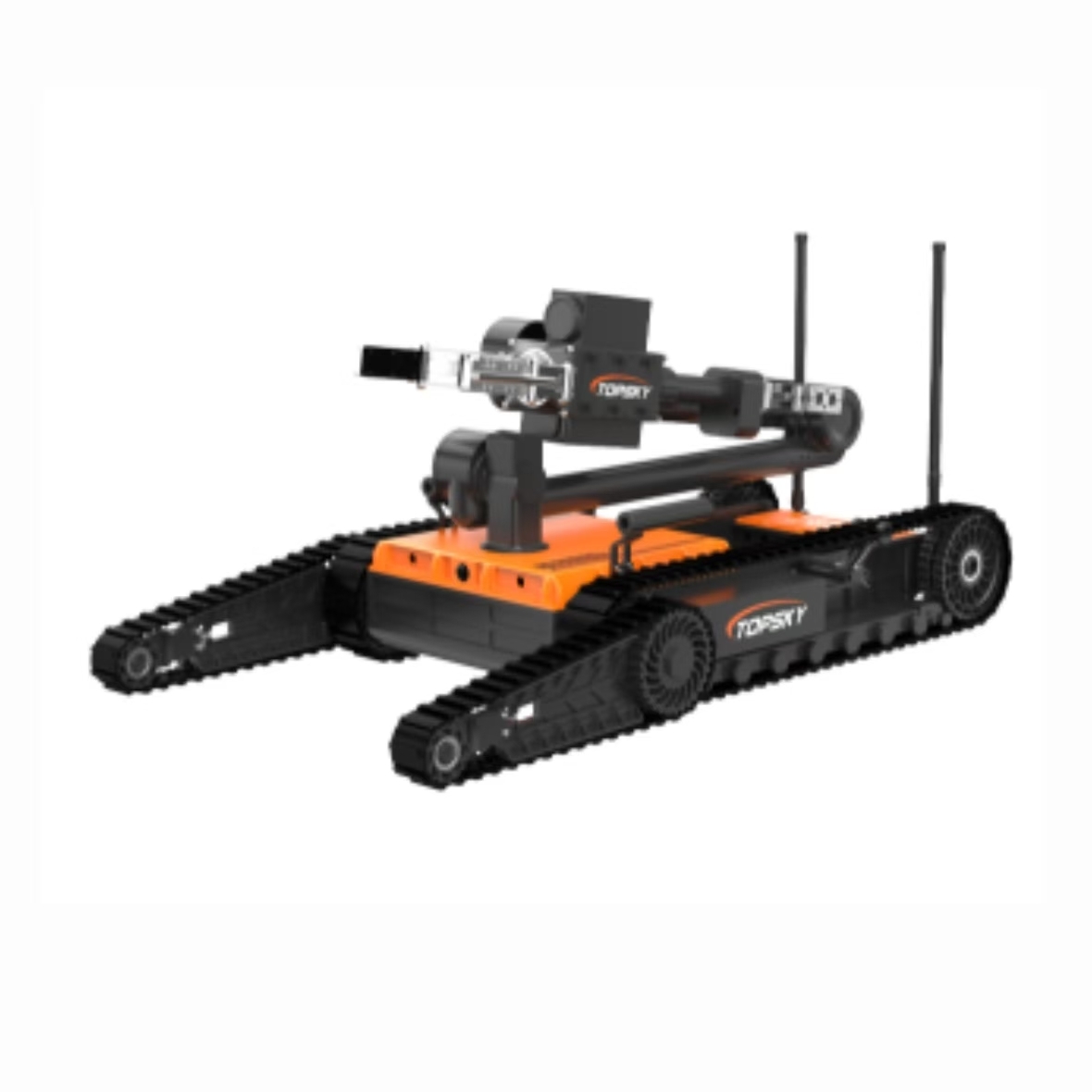

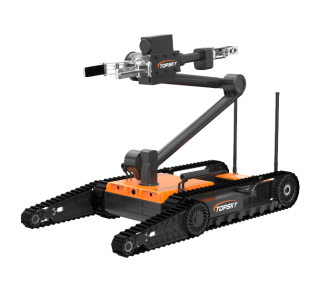

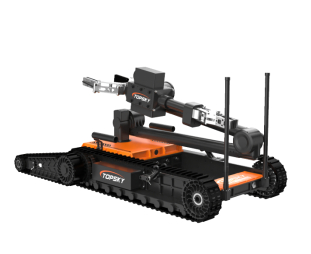

Lightweight Explosive Ordnance Disposal Robot
Overview
Designed for explosive handling and reconnaissance in inaccessible terrain, this EOD robot features a 7-degree-of-freedom robotic arm capable of rotating at various angles. The arm can lift up to 16kg at the proximal end and 3kg at the gripper, and can be equipped with explosive destruction devices for on-site neutralization.
Key Features
  • Advanced Robotic Arm: 7 degrees of freedom with 15 preset shortcut functions and one-click reset
  • Superior Mobility: Climbs 45° slopes, 43° stairs, overcomes 30cm obstacles, and crosses 40cm trenches
  • Enhanced Vision System: 4 HD cameras plus 1 pan-tilt-zoom camera with 1km communication range
  • Modular Design: Robotic arm, battery, and control box components for easy maintenance
  • Dual Control: Wired operation capability for environments with network interference
Technical Specifications
Model ER3 Generation 9
Dimensions ≤ 830mm (L) × 600mm (W) × 450mm (H) in transport state
Weight ≤ 37kg
Power Lithium Polymer Battery
Max Speed ≥ 1.8m/s with variable speed control
Operation Time ≥ 4 hours continuous
Control Range ≥ 500m wireless (visual)
Protection Rating IP65 (whole machine)
Compliance GA/T 142-1996 Police Industry Standard
Performance Capabilities
  • Slope climbing: ≥ 45°
  • Stair climbing: ≥ 43°
  • Obstacle clearance: ≥ 300mm
  • Trench crossing: ≥ 400mm
  • Water fording: 200mm depth
  • Braking distance: ≤ 0.1m
  • Straight running deviation: ≤ 3%
